Wolfgang Special QM, Baked Maple Fingerboard Sangria

WOLFGANG® SPECIAL QM, BAKED MAPLE FINGERBOARD

Road-tested in arenas around the world, the Wolfgang® Special is a purebred music-making machine, designed with stunning style, giant sound and high-speed playability.

The Wolfgang Special QM features a basswood body with an arched quilt maple top and a robust graphite-reinforced bolt-on quartersawn baked maple neck. The neck is carved and rolled to Eddie Van Halen's exacting specifications and features a hand-rubbed satin urethane finish on the back. Primed for high performance, energetic riffing and blazing leads, the 12"-16" compound radius baked maple fingerboard has 22 jumbo frets and black dot inlays. Truss rod adjustments have also never been easier thanks to a spoke wheel conveniently located at the base of the neck.

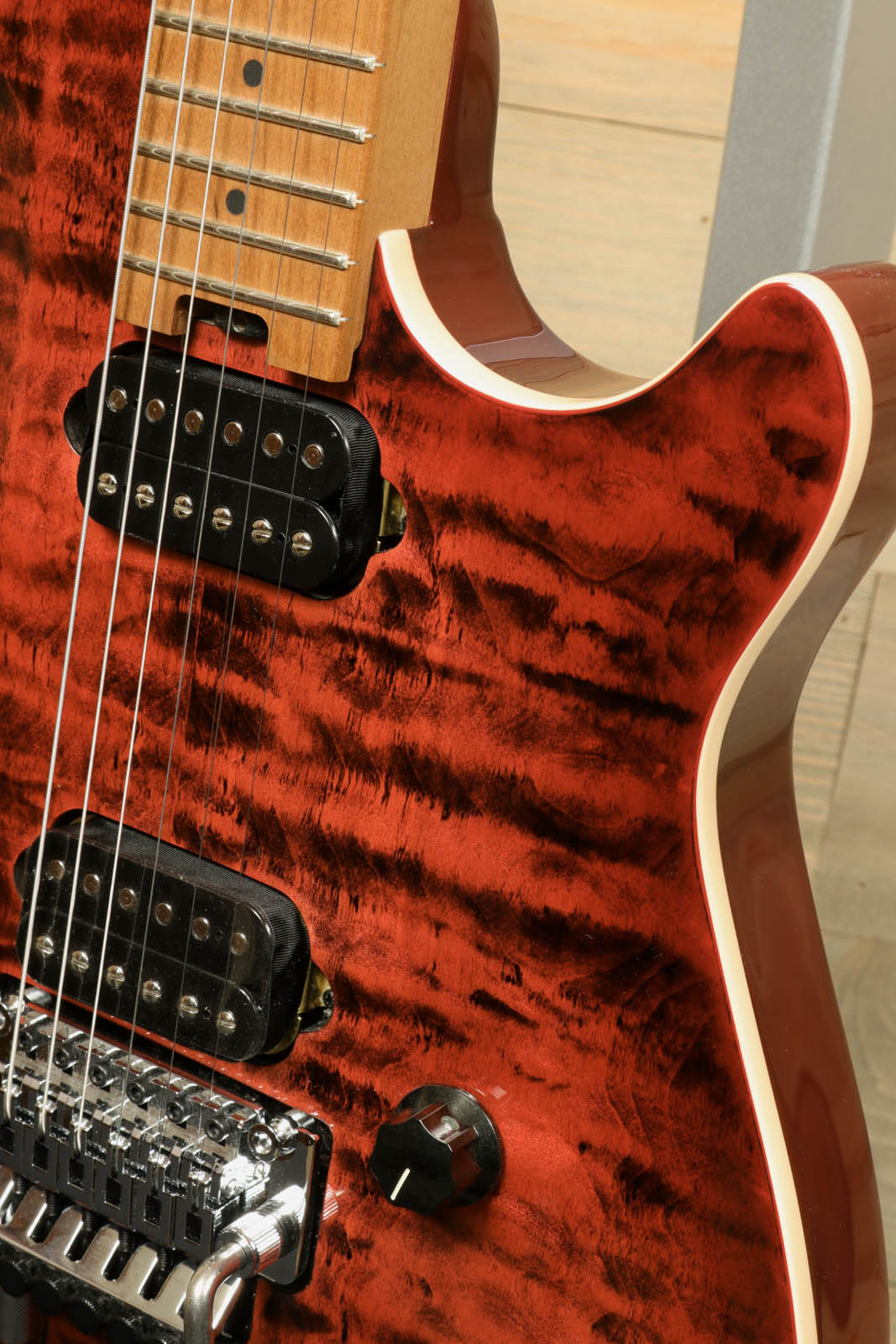

A pair of flagship custom-designed EVH® Wolfgang Alnico 2 humbucking pickups are mounted directly to the body, providing dynamic yet articulate voicing, as well as endless sustain for powerful chords and melody lines. A sturdy and dependable EVH-branded Floyd Rose® locking trem and Floyd Rose locking nut work in tandem for precise tuning even with extreme changes in pitch, while the EVH D-Tuna® retunes to drop-D and back with strict accuracy at the flick of a finger. The volume knob with treble bleed circuit has a 500K EVH Bourns® low friction pot for smooth swells and a tone control knob with a 250K Bourns high friction tone pot that prevents accidental tone shifting.

SPECS

GENERAL

Model Number

5107701598

Series

Wolfgang® Special

Color

Sangria

Number of Strings

6

Orientation

Right-Hand

BODY

Body Finish

Gloss Urethane

Body Shape

Wolfgang®

Body Material

Basswood

Body Binding

1-Ply Cream

Body Top

Arched Quilt Maple

ELECTRONICS

Bridge Pickup

Direct Mount EVH® Wolfgang® Humbucking

Neck Pickup

Direct Mount EVH® Wolfgang® Humbucking

Pickup Color

Black

Controls

Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH® Bourns® High Friction Pot)

Pickup Switching

3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup

Pickup Configuration

HH

NECK

Neck Material

Quartersawn Baked Maple

Neck Construction

Bolt-On with Graphite Reinforcement

Neck Thickness

.805" at 3rd & .890" at 12th Fret

Neck Finish

Hand-Rubbed Satin Urethane

Neck Shape

Wolfgang® Backshape

Scale Length

25.5" (64.77 cm)

Fingerboard Radius

12"-16" Compound Radius (304.8 mm to 406.4 mm)

Fingerboard Material

Baked Maple

Number of Frets

22

Fret Size

Jumbo

Nut Material

Floyd Rose® R2 Locking

Nut Width

1.625" (41.3 mm)

Position Inlays

Black Dot

Side Dots

Black

Truss Rod Nut

Heel-Mount Truss Rod Adjustment Wheel

Truss Rod Wrench

2.5 mm Hex

String Trees

Floyd Rose® Retainer Bar

Headstock

EVH® Wolfgang®

HARDWARE

Bridge

EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®

Hardware Finish

Chrome

Tremolo Arm

Floyd Rose® 1000 Series Locking

Tremolo Block

Brass

Tuning Machines

EVH®-Branded Gotoh®

Control Knobs

Black Plastic with White Indicator

Switch Tip

Black

MISCELLANEOUS

Strings

EVH® Nickel Plated Steel (.009-.042 Gauges)

Strap Buttons

Oversized

ACCESSORIES

Included Accessories

Tremolo Arm, Hex Keys & User Manual
