Boss Katana KTN-MINI

BOSS Katana amps have received accolades from guitarists everywhere for their fantastic sound and feel, onboard effects, and great value. Now, the Katana-Mini makes serious Katana tone accessible in a small, go-anywhere amp that runs on batteries. Offering sound quality that far exceeds other amps in its class, this miniature powerhouse features an authentic multi-stage analog gain circuit for big, expressive sound, plus a traditional analog EQ and an onboard tape-style delay. Ultra-compact and travel-ready, the Katana-Mini delivers inspiring Katana tone anywhere you want to play.

FEATURES:

• Great Katana tone in a highly portable amp
• Rich, full sound that far exceeds other amps in its class
• Authentic multi-stage analog gain circuit and three-band analog tone stack
• Three versatile amp types: Brown, Crunch, and Clean
• Built-in tape-style delay for warm ambience
• Aux input for jamming with music from a smartphone
• Phones/recording output with cabinet voicing
• Runs on six AA-size batteries or optional AC adapter

SPECIFICATIONS:

Rated Power Output: 7 W

Nominal Input Level:

• INPUT: -10 dBu (1 M ohm)
• AUX IN: -10 dBu (20 k ohm)

Speaker: 10 cm (4 inches)

Controls:

• POWER switch
• TYPE switch

GAIN knob:

• VOLUME knob

[EQUALIZER]

• BASS knob
• MIDDLE knob
• TREBLE knob

[DELAY]

• TIME knob
• LEVEL knob

Indicators: POWER

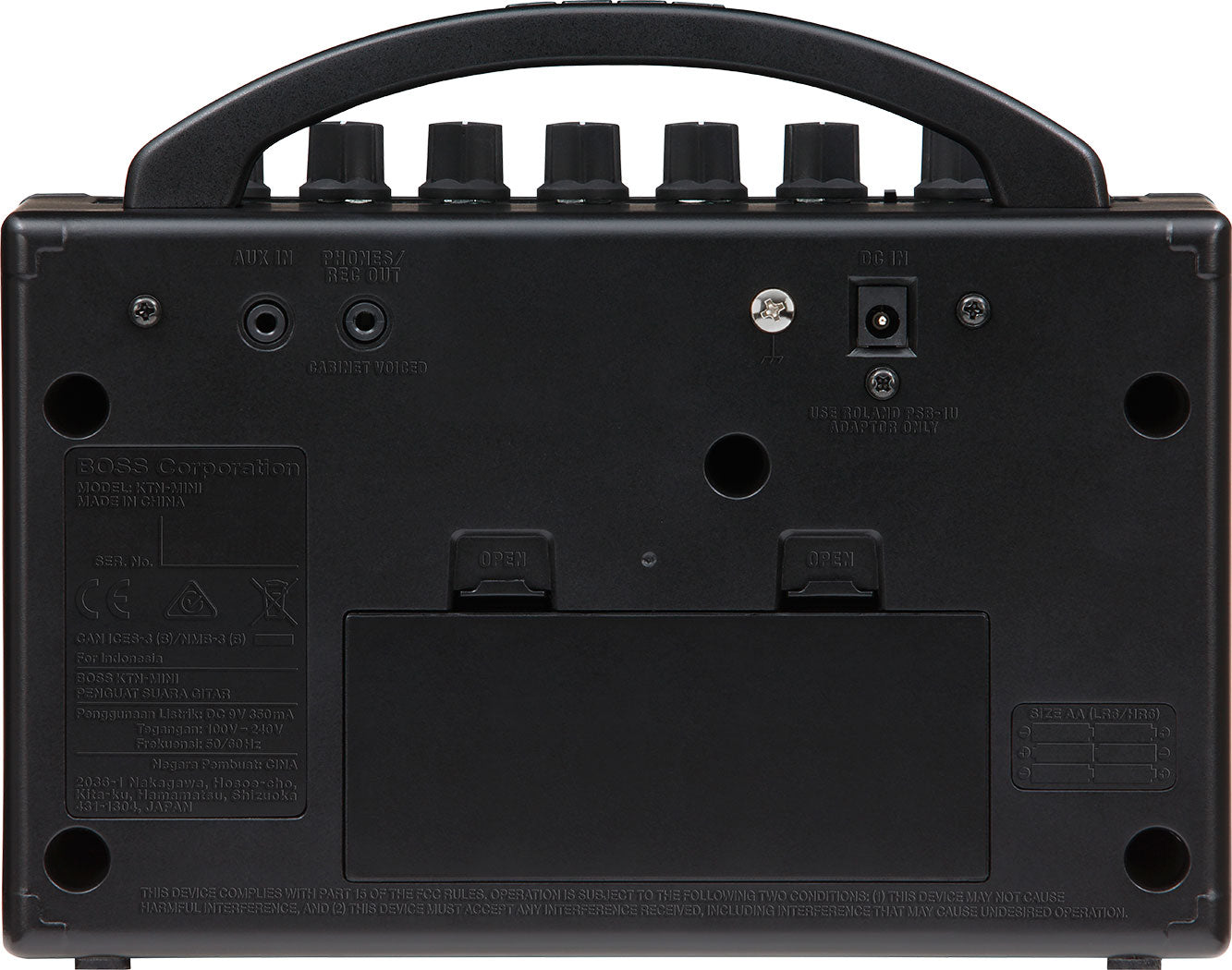

Connectors:

• INPUT jack: 1/4-inch phone type
• AUX IN jack: Stereo miniature phone type
• PHONES/REC OUT jack: Stereo miniature phone type
• DC IN jack

Power Supply:

• Alkaline battery (AA, LR6) x 6
• Rechargeable Ni-MH battery (AA, HR6) x 6

OR

• AC adaptor (sold separately)

Current Draw: 350 mA

Expected battery life under continuous use:

• Alkaline battery: Approximately 7 hours
• Rechargeable Ni-MH battery: Approximately 9 hours (When using batteries having a capacity of 2500 mAh.) * This can vary depending on the capacity of the batteries and the conditions of use.

Accessories:

• Owner's manual
• Alkaline battery (AA, LR6) x 6

Option (sold separately): AC adaptor (PSB series)

SIZE AND WEIGHT:

• Width - 230 mm (9-1/16 inches)
• Depth - 116 mm (4-5/8 inches)
• Height - 181 mm (7-1/8 inches)
• Weight (including battery) - 1.2 kg (2 lbs 11 oz)
