Bag End PS15BN Powered Bass Cabinet

This is an excellent-sounding, powerful bass speaker.  It works as a powered extension for a combo or as a standalone with a preamp.

Here's what Bag End says about it:

• Single 15” Musical Instrument System
• Includes Internal Amplifier, Requires an External Preamp
• Designed For Bass Instruments and Chapman Stick
• Black Nebula Coated Compact Enclosure
• *2/6 Yr. Limited Warranty
• 18”h x 18”w x 15”d,  48 Lbs

ABOUT MINIMA 7™ SELF POWERED The Minima 7™ amplifier is both a high-fidelity and a high-efficiency amplifier. With efficiency well over 80%, it provides more power to the loudspeakers and creates less heat in the amplifier. In real-world applications, the amplifier emits practically no heat, so it requires no cooling fan. The AC power input automatically adapts to any voltage between 88 and 270 volts.

ABOUT NEBULA After 25 years the Deep Red series is now replaced by Nebula. Nebula is our newest loudspeaker series incorporating decades of experience into highly advanced instrument loudspeaker systems. Many of the same models included in Nebula you may recognize from the Deep Red series except they end with an “N” for Nebula rather than a “D”. The same standard dimensions used in the current Oiled Birch cabinets and the previous Deep Red series are implemented allowing multiple Nebula models to be perfectly stacked in many configurations. The cabinets come with rubber feet on two sides and matching feet pockets on two sides allowing cabinets to be securely interlocked in multiple directions. The Nebula finish is watertight, abrasion resistant, UV resistant, chemical resistant and extraordinarily strong. It’s a beautiful deep purple, almost black, and among the most resilient coatings in the world. Our machined aluminum speaker mounting clamps are secure and strong and allow for easy driver exchange. Flush mounted spring bail handles provide easy handling by keeping hands and wrists away from the cabinet. The handles are made of durable coated steel. Cabinets include a rugged 16-gauge power coated steel grille and flush mounted input plate. Every detail in the Nebula series is perfectly engineered and constructed to insure years of trouble-free operation.

ABOUT MUSICAL INSTRUMENT SYSTEMS Musical Instrument Systems, especially loudspeaker design for use with stringed instruments, require more than just technical expertise. Over the years Bag End® has employed the highest degree of technology into these systems, but beyond that, the loudspeaker becomes an extension of the instrument itself. A well-designed loudspeaker will reproduce all the characteristics of the instrument, but it also adds its own frequency response, distortion and directivity characteristics. Electronic equalization in the instrument and preamp is also widely used. Our loudspeaker designs include artistic subjectivity along with technical excellence to consider and incorporate these variables. Since before Bag End® was formed in 1976 the founders were both technicians and musicians and they incorporated both good taste and technology into the sound design of the early systems. Over the years some of the original designs proved to be exactly what many musicians wanted and therefore, have not changed for over 4 decades. In the 1970’s early Bag End instrument systems were single and double 12” and 15“ models. These early models were inspired by cabinets Alembic built for Jefferson Airplane, Grateful Dead and others. At that time, we designed a modular system of dimensions for arraying and stacking cabinets in various configurations and refined the hardware and finish. The first cabinet built by Bag End was a double 12, serial #1. We sold this one to Mike Sassetti in 1976 and 35 years later Mike bought his second double 12 and he gave us back the #1. While we have refined manufacturing processes and now offer a variety of options, over time our products have remained remarkably consistent and compatible. Rather than changing models every year we standardized our basic dimensions and designs and kept our products consistent over long time periods. Some of the earliest system designs remain in production today and are virtually unchanged. Among them our single 12 and single 15 have become industry standards. Based upon timeless designs and principles they are hard to beat. You might say, if you get it right the first time you don’t need the new improved version. Bag End systems are made to sound great, last long, and be serviceable. Used Bag End cabinets demand the highest price because most musicians keep them. It’s an investment for a lifetime.

System Type:

Rear vented 1.5 ft3

Enclosure:

18 mm 13-ply birch plywood

Finish:

Coated Nebula finish

Grille:

16 Gauge black powder coated perforated

steel

Low Frequency Components:

E-15 Transducers, 15” Cone, 2.5” Voice coil,

80 oz Magnet

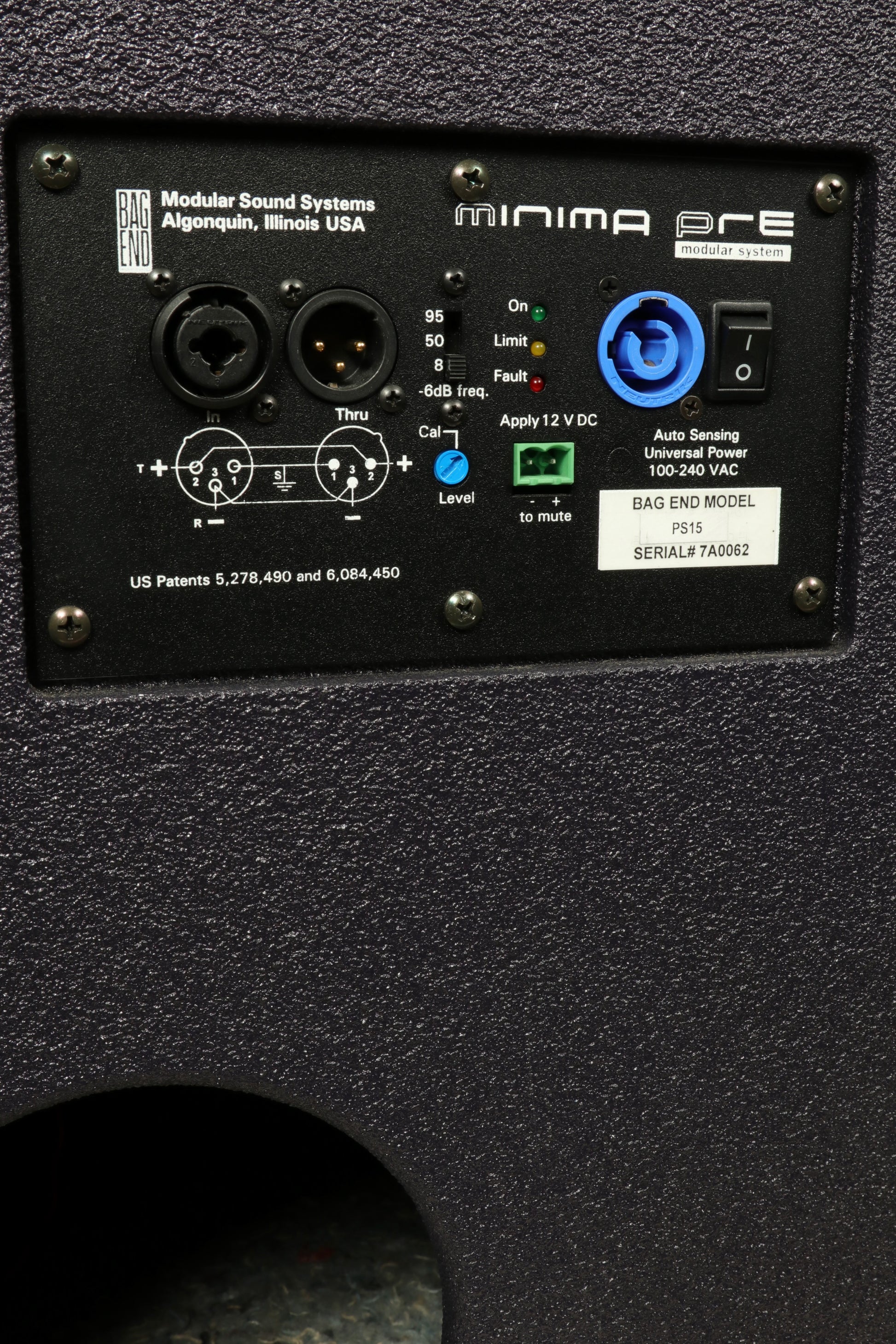

Input Connector:

XLR 1/4” combo with XLR loop through

Optional passive Neutrik® speakON input

Internal Amplification:

Minima 7™

Input Impedance:

48K ohms

Input CAL Sensitivity:

+4 dBu

Maximum Continuous Amplifier

Power:

750 W

High Pass Filter:

Switchable: -6 dB @ 8 Hz; @ 50 Hz; @ 95 Hz

Overload Protection:

Internal limiter

LED Indicators:

Green - On

Yellow - System limit

Mains Voltage Requirements:

Auto sensing

100 / 120 / 240 V

Mains Current Requirements:

2.3 A @ 120 V

1.2 A @ 240 V

Hardware:

2 – Handles

8 – Feet

Sensitivity:

103 dB SPL (2.83 V @ 1 m)

Frequency Response:

46 Hz to 4 kHz ±6 dB

Polarity:

A positive asymmetrical signal applied to pin 2

will result in a positive asymmetrical

acoustical pressure

Dimensions:

18” h x 18” w x 15” d

46 cm x 46 cm x 38 cm

Weight:

48 lbs

22 kg
